An RC servomotor commonly available for Remote Controlled models can be easily connected to the dyno controller and used for example to open an engine throttle on an engine dyno.

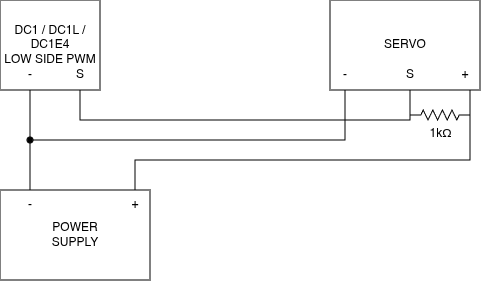

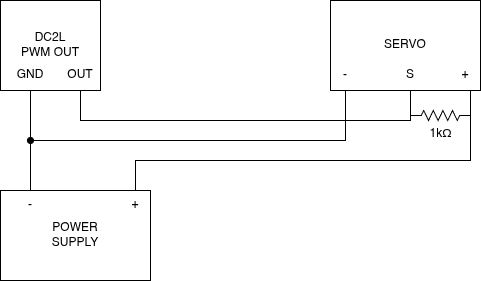

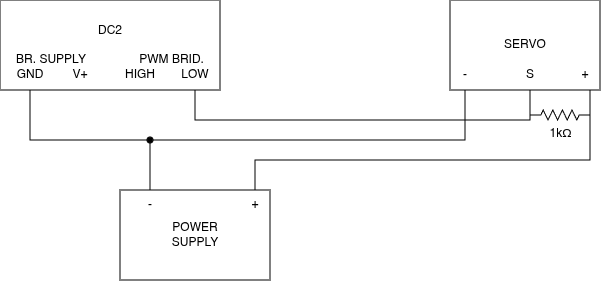

RC servo wiring diagrams
Configuration

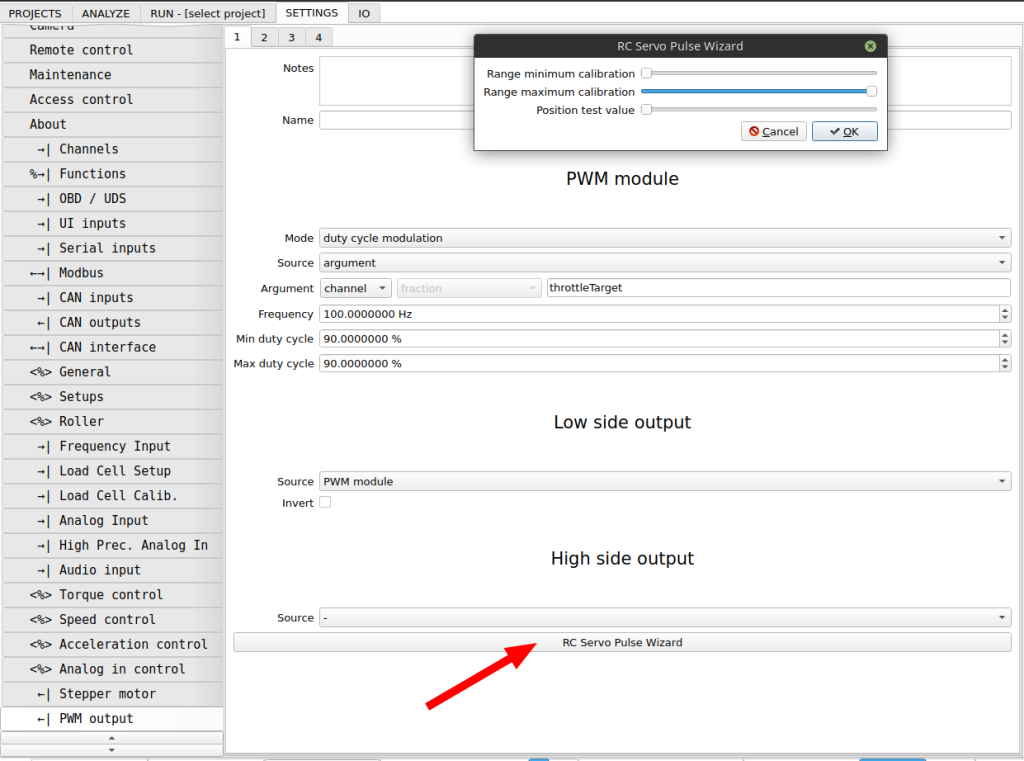

From SETTINGS / PWM output run RC Servo Pulse Wizard. It will set up the PWM module for correct frequency and duty cycle to execute servomotor movement in the range you require. It will also let you test servomotor position in real-time.
