Description

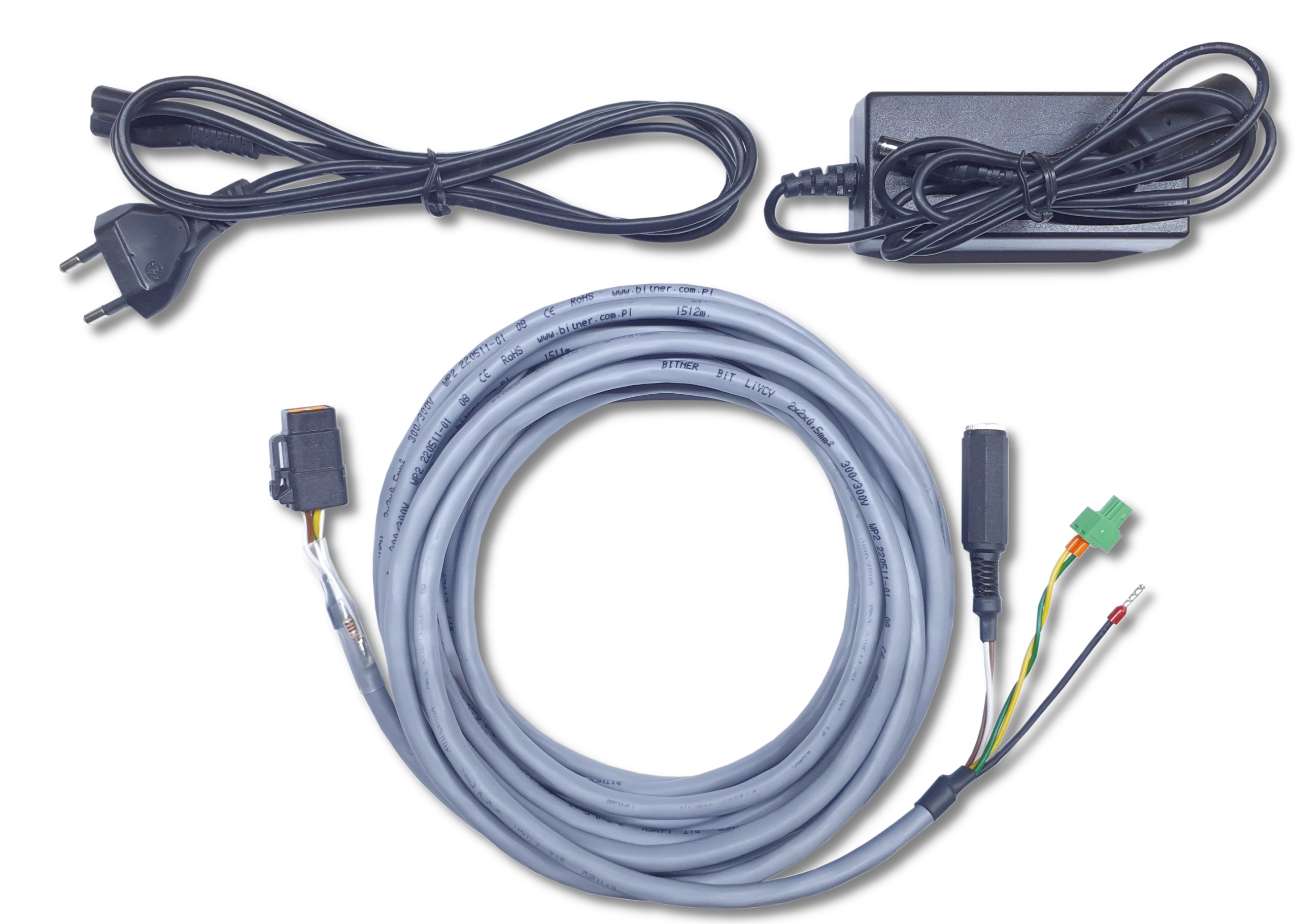

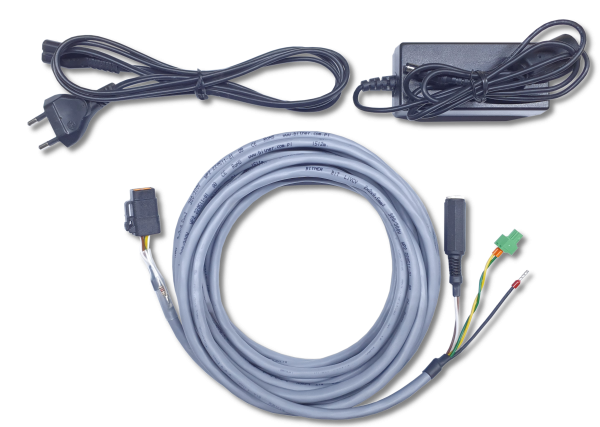

Plug and Play wiring loom for connecting Ecumaster LAMBDA to CAN to DC series dyno controller.
Terminated with 120 Ohm resistor on the Ecumaster LTC side.
Length: 5m
Cable: Shielded 2x2x0.5mm² twisted pair
12V 3A power supply included
3 pin connector with green (CAN high) and yellow (CAN low) wires should be plugged into CAN socket in the DC2 series controller.
When using with older DC1 series controller with 2 pin CAN connector, the green and yellow wires need to be swapped to a 2 pin connector. Black wire needs to be connected to any spare GND terminal.
