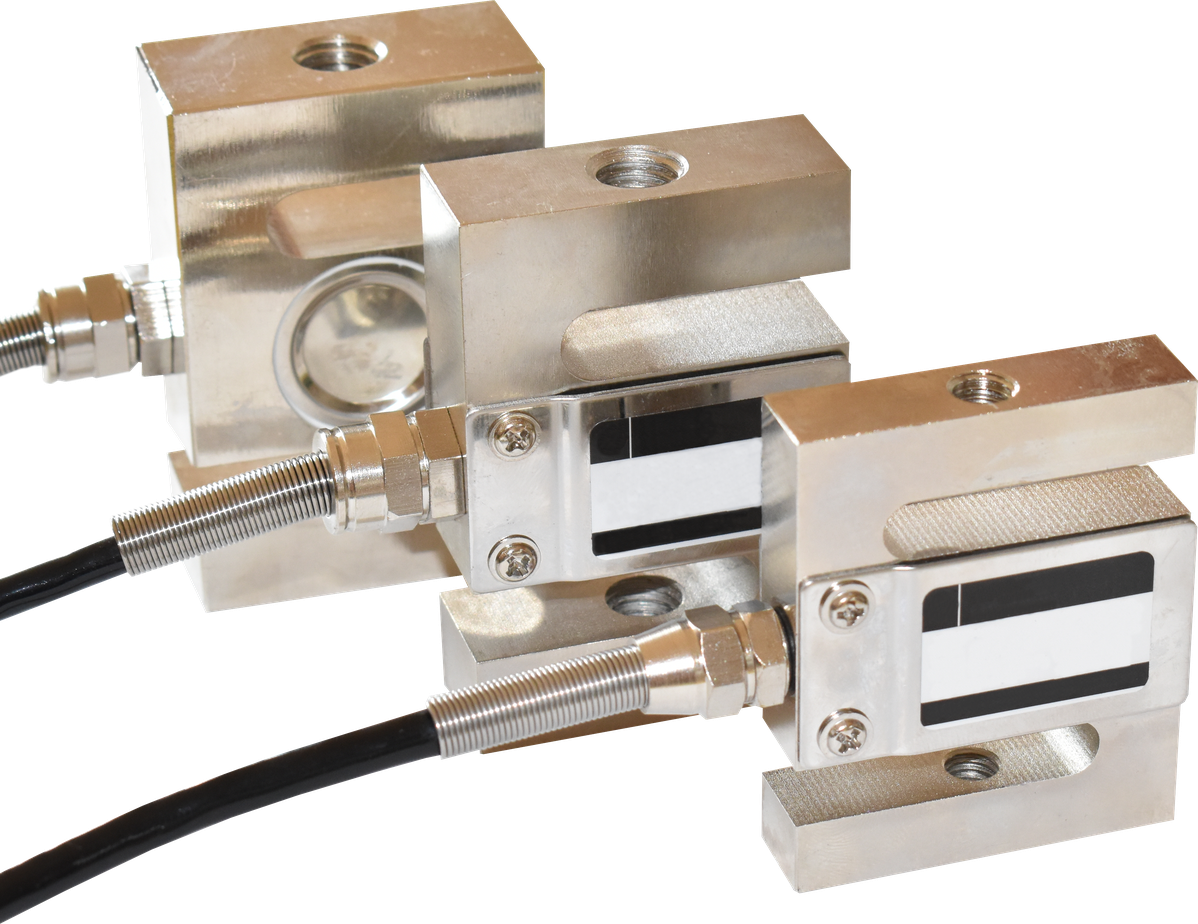

S Type Load Cell

381,30

Load cell used to measure dyno absorber torque. The load cell must be installed on ball joints to be only pulled or compressed.

Clear

Description

Load cell used to measure dyno absorber torque. The load cell must be installed on ball joints to be only pulled or compressed.

  • Material:  Chromium alloy steel 40Cr
  • Connection wire: Shielded 2m long
  • Class: C2
  • Sensitivity: 2.0 ± 0.05mV / V
  • Temperature coefficient: ± 0.003≤% F.S / ℃
  • Nonlinearity: ± 0.03≤% F.S
  • Hysteresis: ± 0.03≤% F.S
  • Repeatability: ± 0.03≤% F.S
  • Creep: ± 0.03≤% F.S / 30min
  • Zero output: ± 1≤% F.S
  • Zero temperature coefficient: ± 0.03≤% F.S / 10℃
  • Working temperature range: -20 ~ 80℃
  • Input resistance: 350 ± 20Ω
  • Output resistance: 350 ± 5Ω
  • Safe overload: 150% F.S
  • Insulation resistance: ≥2000MΩ
  • Recommended excitation voltage: 5-15V





Range A B [mm] C [mm] D [mm]
20kg, 50kg M8x1.25 12.7 50.8 63.5
100kg, 200kg M12x1.75 19 50.8 76.2
500kg M12x1.75 25.4 50.8 76.2
1T M16x1.75 25.4 50.8 76.2

Additional information

Load cell version

1000kg 2mV/V, 500kg 2mV/V, 200kg 2mV/V, 100kg 2mV/V, 50kg 2mV/V, 20kg 2mV/V
